Specs

Body
Body Material

– Eco-composite

Body Finish

– Satin finish, Metallic colors

Neck
Neck Material

– Maple

Neck Shape

– “C” Shape

Fingerboard

– Tectona Grandis

Number of Frets

– 22

Nut Material

– Graphite

Position Inlays

– White Dots

Side position marks

– White Dots

Neck Finish

– Satin Urethane

Scale Length

– 25.5” (64.77cm)

Fingerboard Radius

– 12” (305mm)

Fret Size

– 2.7mm, Nickle Silver

Nut Width

– 1.650” (42mm)

Truss Rod

– 430mm Double Action Head Adjust

Electronics
Pickup

– S-S-S

Controls

– 1*Master Volume, 2*Tone

Switching

– 5-Position Blade

– Position1: Neck Pickup

– Position2: Neck and Middle Pickup

– Position3: Middle Pickup

– Position4: Middle and Bridge Pickup

– Position5: Bridge Pickup

Hardware
Finish

– Chrome plated

Bridge

– 6-Point Synchronized Tremolo

Machine

– Sealed Die-cast CR

Pickguard

– 3-ply White

Control Knobs

– White Plastic

Switch Tip

– White

Neck Plate

– 4-Bolt

Strings

– Nickel Plated Steel (.009-.042 Gauges)

Switching System

When the alter switch is in neck position, power tap mode is on. When the alter switch is in bridge position, power tap mode is off. When power tap mode is off and the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, the neck side of the neck pickup and the bridge side of the bridge pickup are selected. When the switch is in bridge position, bridge pickup is selected. When power tap mode is on and the pickup selector switch is in neck position, the neck pickup is selected and in power tap mode. When the switch is in between neck and center position, bridge side of the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected and are both in power tap mode. When the switch is in between center and bridge position, the bridge side of the bridge pickup is selected. When the switch is in bridge position, bridge pickup is selected and is in power tap mode.

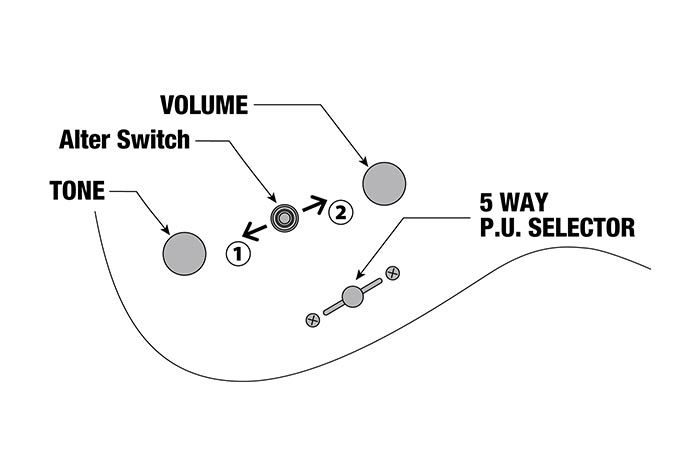

Controls

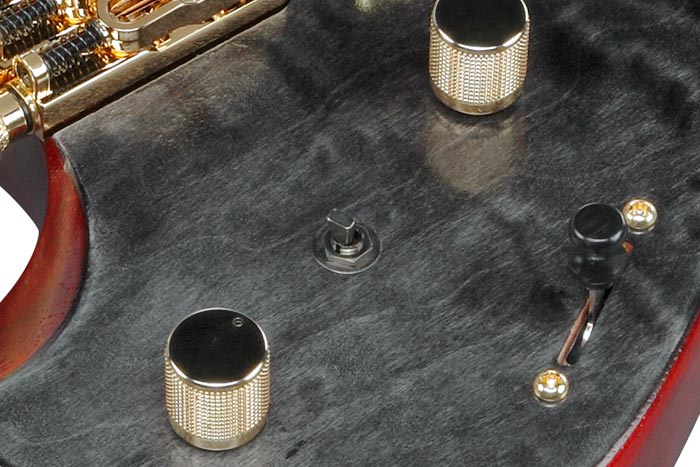

With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the knee cutout is the five-way pickup selector switch. Closest to the end of the body is the tone knob. The volume knob is located right above the five-way pickup selector switch. Between the volume and tone knobs is the alter switch.

Features

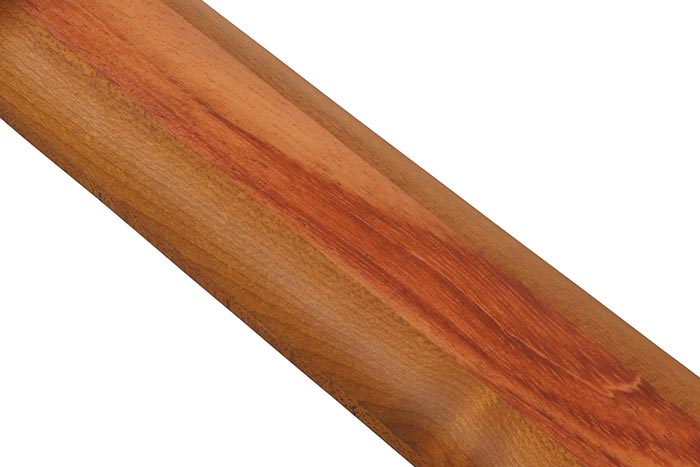

Parallel Wizard 3pc Roasted Maple/Bubinga neck

The Parallel Wizard neck is 19mm thick all the way through the entire length. It provides an amazing fretting-hand experience for the players who prefer their instrument held in a higher playing position. The 3pc Roasted Maple/Bubinga construction also offers excellent stability and long-term durability.

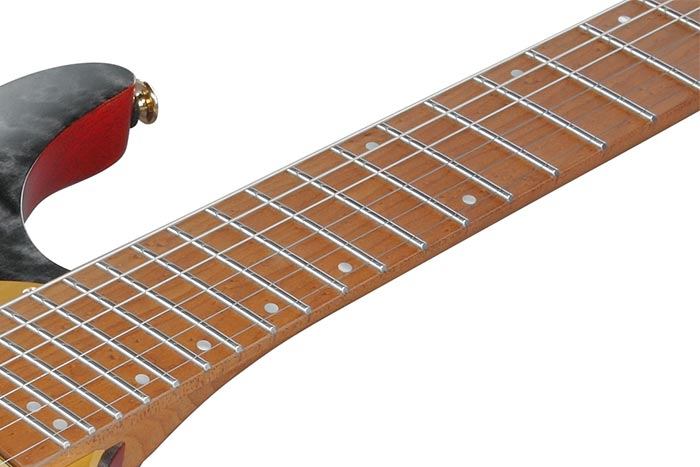

Roasted Birdseye Maple fretboard

The beautiful Birdseye Maple fretboard imbues this model with an exotic appearance. The fretboard is heat-treated for a balanced attack and rich sustain.

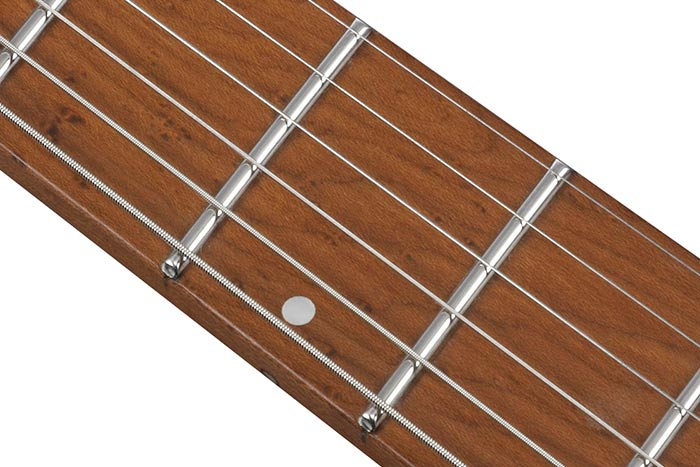

Jumbo Stainless Steel frets

Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response and effortless articulation when playing chords and clear tone when playing single notes.

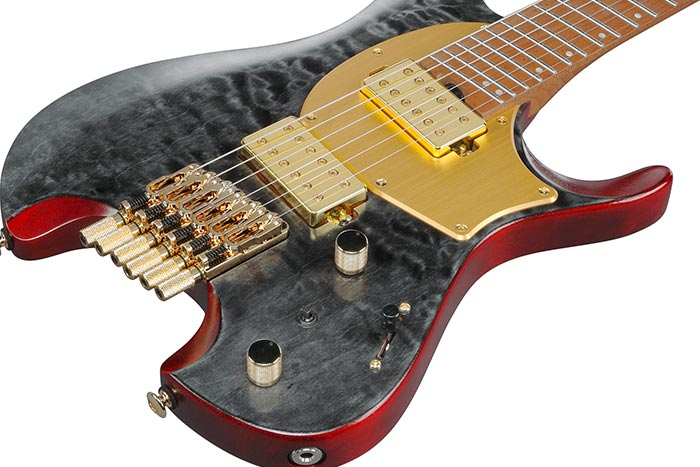

Quilted Maple top / Nyatoh body

The Quilted Maple top sonically enriches the response for picking. Nyatoh used as body wood provides a rich mid-low end.

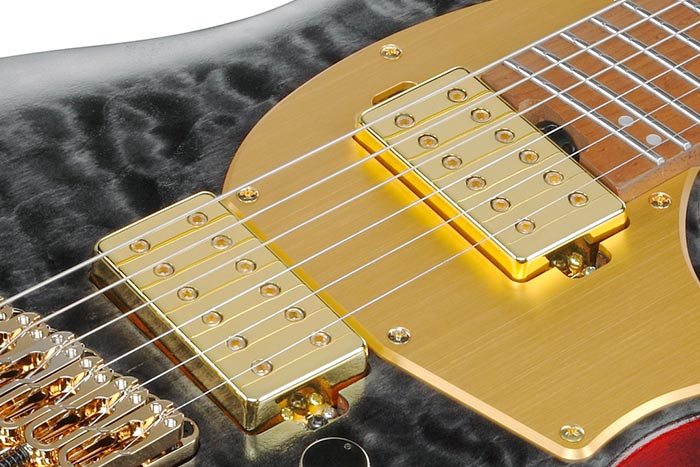

Q58 H-H pickups

Q58 pickups are designed specifically for use in headless guitars. They provide a clearly defined sound, facilitating excellent tonal balance through all frequencies. The lows are powerful without being muddy, and the highs are bright and clear, but never harsh. As a result, every single note within the chord structure is well defined, and clearly audible. These pickups, with their tonal balance, and extremely low noise performance, work extremely well with both digital and analog effects.

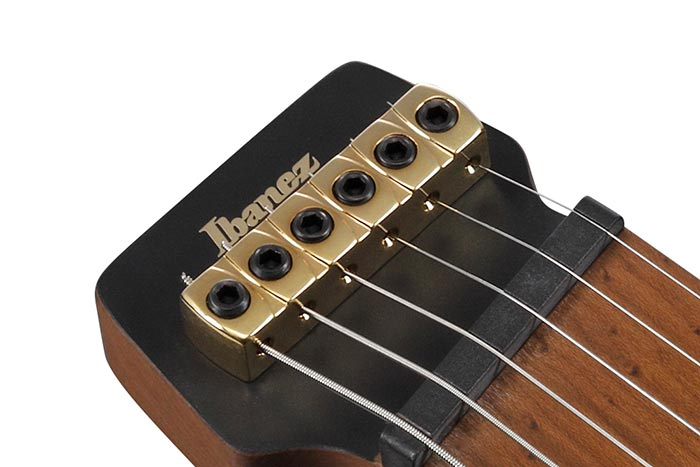

Custom string lock

This custom string lock is one-piece unit that features very simple construction. This means the hardware requires less maintenance, is highly durable, and allows for very easy string changes. Additionally, no proprietary string is required, so you can continue to use your favorite gauge and brand.

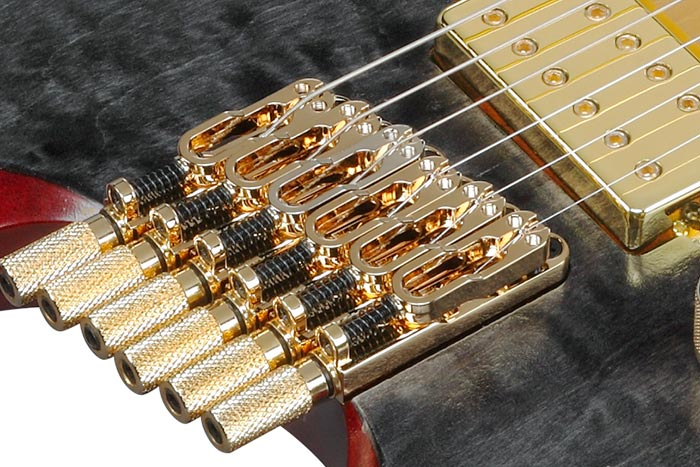

Mono-Tune bridges

The Mono-Tune bridges offer a wide intonation range so that you can easily set the instrument up for tuning down a whole step or even further. The string height is also easily adjustable, and each saddle generally has less material, which leads to more natural and organic tone.

dyna-MIX10 switching system with Alter Switch

The dyna-MIX 10 offers ten sound variations and can easily switch from humbucker and single coil modes with the mini switch. The power Tap mode provides a realistic single coil sound despite its two humbucker pickup layout.

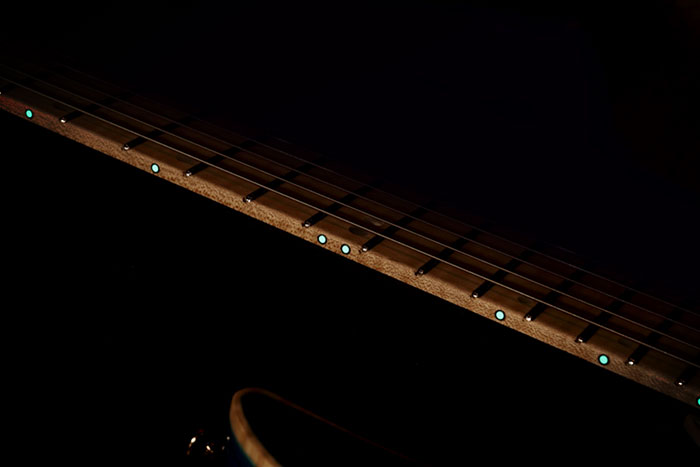

Luminescent side dot inlays

The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
